Britain
Sexton 25pdr (Sexton)

Share with Facebook


The Sexton 25pdr based on the existing SP Gun and was in use from 1943.

Flag of World War 2 Britain

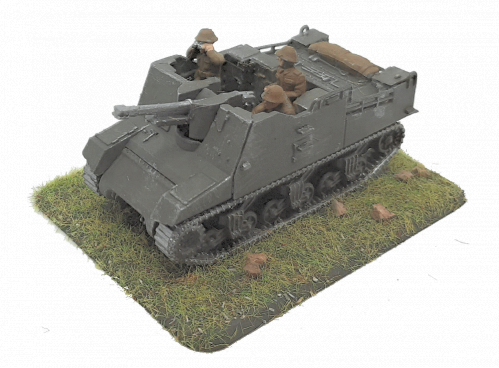

Photo of Sexton 25pdr (Sexton)

General Details
Specifications
Operational Date(s)1943
Ordnance classification
Quantity Produced0
Weightunknown
Crew6
M.G's smalln/a
M.G's large(>10mm)n/a
Length6.18 mtr
Width2.74 mtr
Height2.46 mtr
Engine Details/Performance
Max Road Speed24 mph
Max Cross Country Speedunknown
Range Road0 miles
Range Cross Countryunknown
Fuel TypeUnknown
Fuel Capacityunknown
Horse Power0 hp
Power/Weightunknown
General Information
The Sexton 25pdr based on the existing SP Gun and was in use from 1943.

Its main armament consisted of an Ordnance Q.F. 25pdr Mk 2 which could penetrate 142 mm of flat plate at 100 metres


Armour Details
Turret
Frontn/a
Siden/a
Rearn/a
Topn/a
Superstructure
Front65mm@45°(92mm)
Side50mm@(50mm)
Rear38mm@(38mm)
Top19mm@90°(19mm)
Hull
Front40mm@45°(57mm)
Side40mm@(40mm)
Rear38mm@(38mm)
Top14mm@90°(14mm)
Armour (x)mm @ (y)° (Effective mm @ 0°)
Effective Armour - Maximum 92 mm - Minimum 14 mm



Weapon Details
Flag
Ordnance Q.F. 25pdr Mk 2
(Field Gun)
Blank
photo of Ordnance Q.F. 25pdr Mk 2 from 25pdr from Wikipedia
Manufactured1940 - 2018
Calibre87mm
LengthL/27
Rate of Fire8 rpm

Ammunition Details
Name/Id Calibre Weight MVelocity Explosive Content
25pdr AP
(AP Armor Piercing)
87mm 11.3Kg 518M/Sec
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.2 0.4 0.81 1.7 2.69 3.79 5.01 6.4
Penetration(mm@30°) 122 115 106 95 84 75 65 57
Penetration(mm@0°) 142 133 123 110 98 87 76 66
Hit Probability(%) 98 98 98 81 41 22 6 3



25pdr Supercharge
(AP Armor Piercing)
87mm 11.3Kg 564M/Sec
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.18 0.36 0.74 1.56 2.47 3.48 4.6 5.88
Penetration(mm@30°) 133 125 116 103 92 81 71 62
Penetration(mm@0°) 154 145 134 120 107 94 83 72
Hit Probability(%) 98 98 98 85 48 25 8 3



25pdr HE
(HE High Explosive)
87mm 11.5Kg 532M/Sec 0.793Kg explosive
Maximum Range 8000 Mtr
Range(Mtr)10002000300040005000600070008000
Flight Time(Secs) 2.12 4.87 8.58 13.84 21.9 35.81 65.5 173.58
Direct Fire
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.19 0.38 0.79 1.65 2.61 3.68 4.87 6.21
Hit Probability(%) 98 98 98 81 41 22 8 3
Blast/Fragmentation Effects
Burst radius Infantry in open 99% kill2 mtr Burst radius Infantry in open 66% kill5 mtr
Burst radius Infantry in open 33% kill13 mtr  Armour Penetration inc roof at 1 mtr2 mm
An explosion within 2 mtr of infantry in the open will cause 99% casualties - lethal.
An explosion within 5 mtr of infantry in the open will cause > 66% casualties and could damage some AFV's.
An explosion within 13 mtr of infantry in the open will cause 33% casualties.
The blast effect of this shell exploding within 1 mtr of an armoured vehicle will penetrate 2 mm of the tank armour including the roof.

Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.

The data that has been used to create these records has come from Wikipedia, The Lone Sentry, The Bundes Archive and numerous books and websites that have provided the detailed information that has not been available anywhere else. The information we use to calculate the penetration tables, flight times and the hit probability comes from the Gun Calibre, the Shell Mass(Kg) and the muzzle velocity, plus range reductions to allow for gravity and wind resistance. This calculation originally came from a pre-war Krupp calculation which has been modified, and seems to fit the actual test results.
