Italy
Semovente da 90/53 su scafo di carro M41

Share with Facebook


The Semovente da 90/53 su scafo di carro M41 was designed in 1941, manufactured by Fiat-Ansaldo based on the existing fully tracked M13/40 and was in use from 1942 to 1944.

Flag of World War 2 Italy

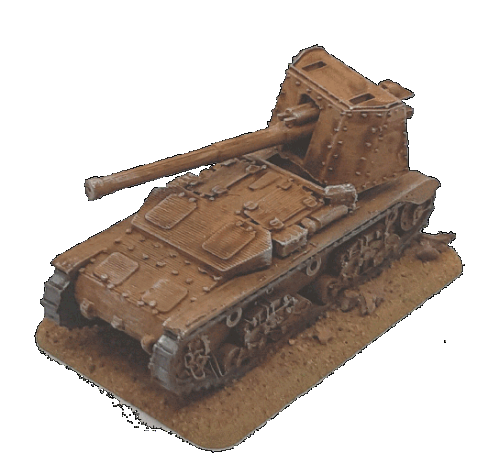

Photo of Semovente da 90/53 su scafo di carro M41

General Details
Specifications
Operational Date(s)1942 - 1944
Quantity Produced30
Weight17 tonne
Crew4
M.G's smalln/a
M.G's large(>10mm)n/a
Length5.33 mtr
Width2.26 mtr
Height2.31 mtr
Engine Details/Performance
Max Road Speed15 mph
Max Cross Country Speed8 mph
Range Road124 miles
Range Cross Country49 miles
Fuel TypePetrol
Fuel Capacityunknown
Horse Power145 hp
Power/Weight8 hp/tonne
General Information
The Semovente da 90/53 su scafo di carro M41 was designed in 1941, manufactured by Fiat-Ansaldo based on the existing fully tracked M13/40 and was in use from 1942 to 1944.

The vehicle was powered by FIAT-SPA 'SPA 15-TM-41' petrol powerplant producing 145 HP which could drive the vehicle on roads at up to 15 mph with a range of about 124 miles before refuelling. Its cross country performance was adequate providing a max speed of about 8 mph and a range of about 49 miles.

Its main armament consisted of an Cannone contracarro da 90/53 which could penetrate 175 mm of flat plate at 400 metres

The Semovente 90/53 was a self propelled gun based on the M13/40 chassis.

The vehicle was powered by a Fiat diesel engine of 145hp the front drive sprockets took the track inder eight road wheels on two bogies, round the rear idler and back via three return rollers.

The gun was a 90mm L/43 howitzer mounted in a box shaped superstructure.

Armour Details
Turret
Frontn/a
Siden/a
Rearn/a
Topn/a
Superstructure
Front30mm@11°(31mm)
Side25mm@(25mm)
Rear25mm@(25mm)
Top15mm@90°(15mm)
Hull
Front30mm@45°(42mm)
Side25mm@(25mm)
Rear25mm@(25mm)
Top15mm@90°(15mm)
Armour (x)mm @ (y)° (Effective mm @ 0°)
Effective Armour - Maximum 42 mm - Minimum 15 mm



Weapon Details
Flag
Cannone contracarro da 90/53 Blank
Calibre90mm

Ammunition Details
Name/Id Calibre Weight MVelocity Explosive Content
AP
(AP Armor Piercing)
90mm 10.33Kg 830M/Sec
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.12 0.25 0.5 1.06 1.67 2.34 3.1 3.94
Penetration(mm@30°) 174 163 151 135 122 108 96 84
Penetration(mm@0°) 201 189 175 157 141 125 111 97
Hit Probability(%) 98 98 98 98 81 54 25 22

Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.

The data that has been used to create these records has come from Wikipedia, The Lone Sentry, The Bundes Archive and numerous books and websites that have provided the detailed information that has not been available anywhere else. The information we use to calculate the penetration tables, flight times and the hit probability comes from the Gun Calibre, the Shell Mass(Kg) and the muzzle velocity, plus range reductions to allow for gravity and wind resistance. This calculation originally came from a pre-war Krupp calculation which has been modified, and seems to fit the actual test results.
