Italy
Auto Blinda 41 Armoured Car

Share with Facebook


The Auto Blinda 41 Armoured Car was designed in 1940, manufactured by Fiat-Ansaldo based on the existing 4 x 4 drive Armoured Car and was in use from 1941 to 1943.

Flag of World War 2 Italy

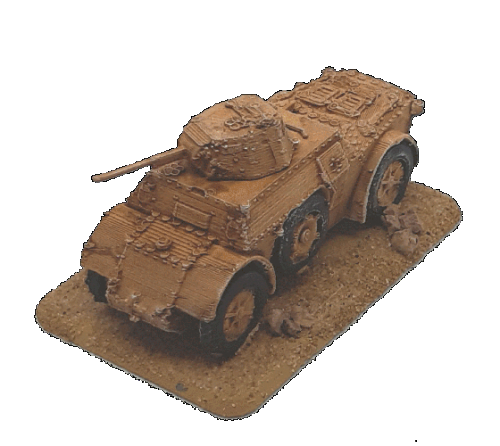

Photo of Auto Blinda 41 Armoured Car
Auto Blinda 41 Armoured Car scale illustration

General Details
Specifications
Operational Date(s)1941 - 1943
Quantity Produced0
Weight7.5 tonne
Crew4
M.G's small2
M.G's large(>10mm)n/a
Length5.26 mtr
Width1.95 mtr
Height2.46 mtr
Engine Details/Performance
Max Road Speed47 mph
Max Cross Country Speed23 mph
Range Road250 miles
Range Cross Country112 miles
Fuel TypePetrol
Fuel Capacityunknown
Horse Power120 hp
Power/Weight16 hp/tonne
General Information
The Auto Blinda 41 Armoured Car was designed in 1940, manufactured by Fiat-Ansaldo based on the existing 4 x 4 drive Armoured Car and was in use from 1941 to 1943.

The vehicle was powered by Fiat 'SPA I6 petrol' petrol powerplant producing 120 HP which could drive the vehicle on roads at up to 47 mph with a range of about 250 miles before refuelling. Its cross country performance was good providing a max speed of about 23 mph and a range of about 112 miles.

It was armed with 2 light machine guns which were Breda Modello 38s. Its main armament consisted of an Cannone-Mitragliera da 20/65 modello 35 (Breda) which could penetrate 13 mm of flat plate at 400 metres



This was an upgraded Auto Blinda 41 and armed with the Breda mod. 20mm 35 autocannon.

Armour Details
Turret
Front19mm@15°(20mm)
Side9mm@15°(9mm)
Rear9mm@15°(9mm)
Top6mm@90°(6mm)
Superstructure
Front9mm@45°(13mm)
Side9mm@30°(10mm)
Rear9mm@30°(10mm)
Top6mm@80°(6mm)
Hull
Front9mm@45°(13mm)
Side9mm@30°(10mm)
Rear9mm@30°(10mm)
Top6mm@80°(6mm)
Armour (x)mm @ (y)° (Effective mm @ 0°)
Effective Armour - Maximum 20 mm - Minimum 6 mm



Weapon Details
Flag
Breda Modello 38
(Machine Gun)
Blank
History
The Breda model 38 was the Italian army standard vehicle mounted machine gun.
ManufacturerBreda Meccanica Bresciana
Manufactured1937 - 1943
Calibre7.92mm
LengthL/98
Rate of Fire200 rpm

Ammunition Details
Name/Id Calibre Weight MVelocity Explosive Content
7.92×57mm Mauser
(BALL Standard Small Arms)
7.92mm 0.012Kg 910M/Sec
Quoted Penetration 8mm @ 100mtr/30° ( ≈ 9mm/0°)
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.17
Penetration(mm@30°) 6
Penetration(mm@0°) 7
Hit Probability(%) 98


Weapon Details
Flag
Cannone-Mitragliera da 20/65 modello 35 (Breda) Blank
ManufacturerBreda Meccanica Bresciana
Manufactured1935 - 1985
Calibre20mm
LengthL/91
Rate of Fire240 rpm
Number of Rounds 456


Ammunition Details
Name/Id Calibre Weight MVelocity Explosive Content
20 × 138mm B (Solothurn)
(AP Armor Piercing)
20mm 0.14Kg 900M/Sec
Quoted Penetration 35mm @ 300mtr/0°
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.12 0.25 0.56 1.49
Penetration(mm@30°) 18 14 11 6
Penetration(mm@0°) 21 17 13 8
Hit Probability(%) 98 98 98 88

Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.

The data that has been used to create these records has come from Wikipedia, The Lone Sentry, The Bundes Archive and numerous books and websites that have provided the detailed information that has not been available anywhere else. The information we use to calculate the penetration tables, flight times and the hit probability comes from the Gun Calibre, the Shell Mass(Kg) and the muzzle velocity, plus range reductions to allow for gravity and wind resistance. This calculation originally came from a pre-war Krupp calculation which has been modified, and seems to fit the actual test results.
