Italy
Auto Blinda 40 Armoured Car

Share with Facebook


The Auto Blinda 40 Armoured Car was designed in 1940, manufactured by Fiat-Ansaldo and was in use from 1941 to 1943.

Flag of World War 2 Italy
Photo of Auto Blinda 40 Armoured Car

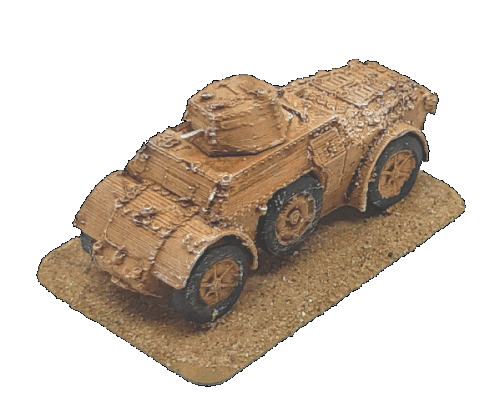

Auto Blinda 40 Armoured Car scale illustration

General Details
Specifications
Operational Date(s)1941 - 1943
Quantity Produced24
Weight7.5 tonne
Crew4
M.G's small2
M.G's large(>10mm)n/a
Length5.26 mtr
Width1.95 mtr
Height2.46 mtr
Engine Details/Performance
Max Road Speed47 mph
Max Cross Country Speedunknown
Range Road250 miles
Range Cross Countryunknown
Fuel TypePetrol
Fuel Capacityunknown
Horse Power88 hp
Power/Weight11 hp/tonne
General Information
The Auto Blinda 40 Armoured Car was designed in 1940, manufactured by Fiat-Ansaldo and was in use from 1941 to 1943.

The vehicle was powered by Fiat 'SPA I6 petrol' petrol powerplant producing 88 HP which could drive the vehicle on roads at up to 47 mph with a range of about 250 miles before refuelling.

It was armed with 2 light machine guns which were Breda Modello 38s.

The Autoblinda was looked on as being a good design for an Armoured Car and was used extensively in North Africa. This early model had a small turret armed with two machine guns, most of these early models were converted into AB41's by replacing the turret.

Armour Details
Turret
Front9mm@15°(9mm)
Side9mm@15°(9mm)
Rear9mm@15°(9mm)
Top6mm@90°(6mm)
Superstructure
Front9mm@45°(13mm)
Side9mm@30°(10mm)
Rear9mm@30°(10mm)
Top6mm@80°(6mm)
Hull
Front9mm@45°(13mm)
Side9mm@30°(10mm)
Rear9mm@30°(10mm)
Top6mm@80°(6mm)
Armour (x)mm @ (y)° (Effective mm @ 0°)
Effective Armour - Maximum 13 mm - Minimum 6 mm



Weapon Details
Flag
Breda Modello 38
(Machine Gun) x 2
Blank
History
The Breda model 38 was the Italian army standard vehicle mounted machine gun.
ManufacturerBreda Meccanica Bresciana
Manufactured1937 - 1943
Calibre7.92mm
LengthL/98
Rate of Fire200 rpm

Ammunition Details
Name/Id Calibre Weight MVelocity Explosive Content
7.92×57mm Mauser
(BALL Standard Small Arms)
7.92mm 0.012Kg 910M/Sec
Quoted Penetration 8mm @ 100mtr/30° ( ≈ 9mm/0°)
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.17
Penetration(mm@30°) 6
Penetration(mm@0°) 7
Hit Probability(%) 98

Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.

The data that has been used to create these records has come from Wikipedia, The Lone Sentry, The Bundes Archive and numerous books and websites that have provided the detailed information that has not been available anywhere else. The information we use to calculate the penetration tables, flight times and the hit probability comes from the Gun Calibre, the Shell Mass(Kg) and the muzzle velocity, plus range reductions to allow for gravity and wind resistance. This calculation originally came from a pre-war Krupp calculation which has been modified, and seems to fit the actual test results.
