WWII Tanks Vehicle Data Sheet

Daimler Dingo MkI, II, III
(also known as Dingo)

Britain

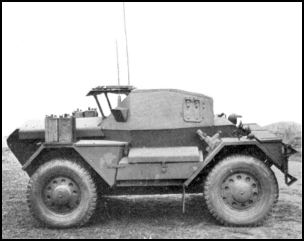

Daimler Dingo MkI, II, III

Scale Drawing not yet available

Armour Details








Superstructure

 Front 30mm@0(30.0mm)
 Side  15mm@60(30.0mm)
 Rear  15mm@50(23.0mm)
 Top  8mm@90(8.0mm)

Hull

 Front 20mm@50(31.0mm)
 Side  15mm@60(30.0mm)
 Rear  15mm@45(21.0mm)
 Top  8mm@90(8.0mm)
Gun Mantlet n/a

Armour (x)mm @ (y) (Effective mm @ 0)

Effective Armour - Maximum 31 (mm) - Minimum 8 (mm)

Specifications

Manufacture Dates 1939 - Unknown
Quantity Produced 6626
Weight  3 (tonnes)
Crew 2
M.G's small 1
M.G's Large -
Length 3.2 (mtr)
Width 1.72 (mtr)
Height 1.51 (mtr)

Engine Details/Performance

Road Speed 55 (mph)
Cross Country Speed - (mph)
Range Road 320 (miles)
Range Cross Country - (miles)
Fuel Type Petrol
Fuel Capacity -
Horse Power 70
Power/Weight 23.33 (HP/tonne)

General Information


The Daimler Dingo MkI, II, IIIalso known as Dingo was an armoured car , 6626 of which were used by the british between 1939 and 1945.

The vehicle was manned by a crew of 2 and was 1.72 metres wide, 3.2 metres long, 1.51 metres high and weighed 3 tonnes.

Powered by a 70hp petrol engine the Daimler Dingo MkI, II, III was capable of a road speed of 55mph . The Daimler Dingo MkI, II, III had a road range of 320 miles

Based on the armoured car chassis, the vehicle was armed with 1 light machine gun.
-
