WWII Tanks Vehicle Data Sheet

PzKpfw I Ausf B 4.7cm Pak (t) (Sf)
(also known as Panzerjager)

Germany

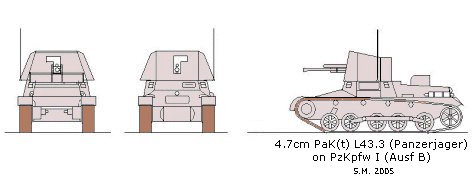

PzKpfw I Ausf B 4.7cm Pak (t) (Sf)

Armour Details

Turret

 Front 14.5mm@27(16.0mm)
 Side  14.5mm@27(16.0mm)



Superstructure

 Front 13mm@22(14.0mm)
 Side  13mm@22(14.0mm)
 Rear  13mm@0(13.0mm)
 Top  6mm@90(6.0mm)

Hull

 Front 13mm@27(15.0mm)
 Side  13mm@0(13.0mm)
 Rear  13mm@17(14.0mm)
 Top  6mm@90(6.0mm)
Gun Mantlet n/a

Armour (x)mm @ (y) (Effective mm @ 0)

Effective Armour - Maximum 16 (mm) - Minimum 6 (mm)

Specifications

Manufacture Dates 1940 - 1943
Quantity Produced 202
Weight  6.4 (tonnes)
Crew 3
M.G's small -
M.G's Large -
Length 4.46 (mtr)
Width 2.08 (mtr)
Height 2.26 (mtr)

Engine Details/Performance

Road Speed 25 (mph)
Cross Country Speed 11 (mph)
Range Road 87 (miles)
Range Cross Country - (miles)
Fuel Type Petrol
Fuel Capacity -
Horse Power 100
Power/Weight 15.62 (HP/tonne)

General Information


The PzKpfw I Ausf B 4.7cm Pak (t) (Sf)also known as Panzerjager was a self propelled anti tank vehicle , 202 of which were used by the germans between 1940 and 1943.

The vehicle was manned by a crew of 3 and was 2.08 metres wide, 4.46 metres long, 2.26 metres high and weighed 6.4 tonnes.

Powered by a 100hp petrol engine the PzKpfw I Ausf B 4.7cm Pak (t) (Sf) was capable of a road speed of 25mph and a cross country speed of 11mph. The PzKpfw I Ausf B 4.7cm Pak (t) (Sf) had a road range of 87 miles

Based on the pzkpfw i chassis, the vehicle was armed with a 4.7cm Pak 36(t) L/43.2 AP with a muzzle velocity of 775m/sec which was capable of penetrating 53mm of armour at 800metres
Primary Armament

4.7cm Pak 36(t) L/43.2 AP
 Calibre 47 mm
 Muzzle Velocity 775 m/sec
 Shell Weight 1.65 Kg
 Ammunition86 rounds carried
Range(metres) 100 200 400 800 1200 1600 2000 2400
Penetration(mm) 63 61 59 53 48 42 37 31
Flight Time(secs) 0.13 0.26 0.54 1.17 1.86 2.64 3.54 4.59
Hit Probability % 98 98 98 96 74 41 22 18
Penetration is mm through vertical plate - calculated
Probability is % chance of hit on a 2 x 2.4mtr static plate
