WWII Tanks Vehicle Data Sheet

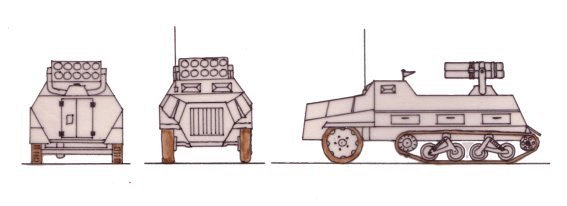

Sdkfz 4 Munitionskraftwagen fur Nebelwerfer
(also known as Maultier)

Germany

Armour Details








Superstructure

 Front 8mm@35(10.0mm)
 Side  8mm@35(10.0mm)
 Rear  8mm@30(9.0mm)
 Top  6mm@90(6.0mm)

Hull

 Front 8mm@6(8.0mm)
 Side  8mm@0(8.0mm)
 Rear  8mm@30(9.0mm)
 Top  6mm@90(6.0mm)
Gun Mantlet n/a

Armour (x)mm @ (y) (Effective mm @ 0)

Effective Armour - Maximum 10 (mm) - Minimum 6 (mm)

Specifications

Manufacture Dates 1943 - 1945
Quantity Produced 289
Weight  7.1 (tonnes)
Crew 3
M.G's small -
M.G's Large -
Length 6 (mtr)
Width 2.2 (mtr)
Height 2.5 (mtr)

Engine Details/Performance

Road Speed 25 (mph)
Cross Country Speed - (mph)
Range Road 81 (miles)
Range Cross Country - (miles)
Fuel Type Petrol
Fuel Capacity -
Horse Power 68
Power/Weight 9.57 (HP/tonne)

General Information


The Sdkfz 4 Munitionskraftwagen fur Nebelwerferalso known as Maultier was an munitions , 289 of which were used by the germans between 1943 and 1945.

The vehicle was manned by a crew of 3 and was 2.2 metres wide, 6 metres long, 2.5 metres high and weighed 7.1 tonnes.

Powered by a 68hp petrol engine the Sdkfz 4 Munitionskraftwagen fur Nebelwerfer was capable of a road speed of 25mph . The Sdkfz 4 Munitionskraftwagen fur Nebelwerfer had a road range of 81 miles

The vehicle was based on the halftrack chassis and was unarmed.
-
