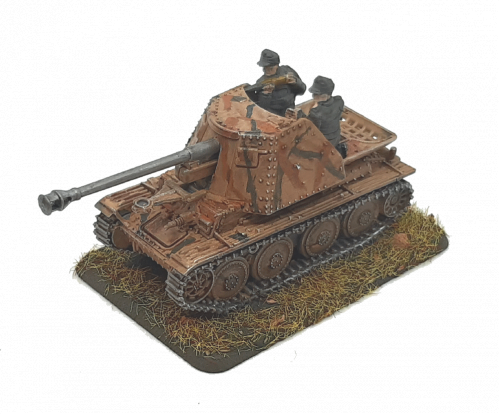

| 7.5cm Pak 40/3 L/46 Gw 38(t)r Ausf M |
|
 |
 |
|
| | Specifications | | Manufacture Date(s) | 1943 - 1945 | | Quantity Produced | 975 | | Weight | unknown | | Crew | 4 | | M.G's small | 1 | | M.G's large(>10mm) | 0 | | Length | 4.95 mtr | | Width | 2.15 mtr | | Height | 2.48 mtr | | Engine Details/Performance | | Max Road Speed | 25 mph | | Max Cross Country Speed | 15 mph | | Range Road | 150 miles | | Range Cross Country | 0 miles | | Fuel Type | Petrol | | Fuel Capacity | 0 gal | | Horse Power | 125 hp | | Power/Weight | unknown | | |
| | Turret | | Front | 6mm@28°(7mm) | | Side | 10mm@16°(10mm) | | Rear | 10mm@17°(10mm) | | Top | 0mm@0° n/a |
| | Superstructure | | Front | 10mm@30°(12mm) | | Side | 10mm@15°(10mm) | | Rear | 10mm@0°(10mm) | | Top | 8mm@90°(8 mm) |
|
| Hull | | Front | 20mm@15°(21mm) | | Side | 15mm@0°(15mm) | | Rear | 10mm@41°(13mm) | | Top | 10mm@90°(10 mm) |
| | Armour (x)mm @ (y)° (Effective mm @ 0°) | | Effective Armour - Maximum 21 mm - Minimum 10 mm |
| | Weapon Details |
|---|
| 7.5cm Pak 40 L/46 |
| Manufactured | 1941 - 1945 |
|---|
| Calibre | 75mm |
|---|
| Length | L/46 |
|---|
| |
| Name/Id |
Calibre Weight MVelocity |
Quoted Penetration |
| |
| AP(AP) |
75mm
6.8Kg
792M/Sec | 94mm@500m |
| Range(Mtr) | 100 | 200 | 400 | 800 | 1200 | 1600 | 2000 | 2400 |
|---|
| Flight Time(Secs) |
0.13 |
0.26 |
0.53 |
1.13 |
1.8 |
2.57 |
3.44 |
4.46 |
|---|
| Penetration(mm) |
105 |
103 |
100 |
95 |
89 |
83 |
78 |
72 |
|---|
| Hit Probability(%) |
98 |
98 |
98 |
96 |
77 |
44 |
25 |
15 |
|---|
| 7.5cm Pzgr 40(APCR) |
75mm
4.1Kg
920M/Sec | 108mm@500m/30° |
| Range(Mtr) | 100 | 200 | 400 | 800 | 1200 | 1600 | 2000 | 2400 |
|---|
| Flight Time(Secs) |
0.11 |
0.22 |
0.46 |
0.97 |
1.55 |
2.21 |
2.96 |
3.84 |
|---|
| Penetration(mm) |
73 |
72 |
70 |
66 |
62 |
58 |
54 |
50 |
|---|
| Hit Probability(%) |
98 |
98 |
98 |
98 |
85 |
57 |
29 |
22 |
|---|
|
|
|
Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.
The data that has been used to create these records has come from Wikipedia, The Lone Sentry, The Bundes Archive
and numerous books and websites that have provided the detailed information that has not been available anywhere else. The
information we use to calculate the penetration tables, flight times and the hit probability comes from the Gun Calibre,
the Shell Mass(Kg) and the muzzle velocity, plus range reductions to allow for gravity and wind resistance. This calculation
originally came from a pre-war Krupp calculation which has been modified, and seems to fit the actual test results.
