Canada
Light Tank M5 (Stuart VI) (Stuart VI)

Share with Facebook

The Light tank M3 Stuart VI was a tank based on the M2A4 with the 37mm anti tank gun having a gyrostabiliser.

The power was provided by twin Cadillac 121hp petrol engines, driving through the front drive wheel, then via 2 pairs of road wheels to a rear idler then back over 3 return rollers.

This model was all welded for better protection ..

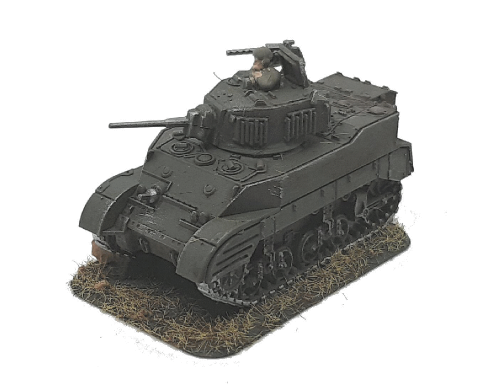

Light Tank M5 (Stuart VI)(Stuart VI) scale illustration

General Details
Specifications
Operational Date(s)1942
Ordnance classification
Quantity Produced2075
Weightunknown
Crew4
M.G's small2
M.G's large(>10mm)n/a
Length4.38 mtr
Width2.26 mtr
Height2.31 mtr
Engine Details/Performance
Max Road Speed40 mph
Max Cross Country Speed24 mph
Range Road100 miles
Range Cross Countryunknown
Fuel TypePetrol
Fuel Capacity89 gal
Horse Power220 hp
Power/Weightunknown
General Information
The Light tank M3 Stuart VI was a tank based on the M2A4 with the 37mm anti tank gun having a gyrostabiliser.

The power was provided by twin Cadillac 121hp petrol engines, driving through the front drive wheel, then via 2 pairs of road wheels to a rear idler then back over 3 return rollers.

This model was all welded for better protection .

Armour Details
Turret
Front51mm@(51mm)
Side32mm@(32mm)
Rear32mm@(32mm)
Top10mm@90°(10mm)
Superstructure
Front57mm@45°(81mm)
Side28mm@(28mm)
Rear28mm@(28mm)
Top9mm@90°(9mm)
Hull
Front57mm@45°(81mm)
Side28mm@(28mm)
Rear28mm@(28mm)
Top9mm@90°(9mm)
Armour (x)mm @ (y)° (Effective mm @ 0°)
Effective Armour - Maximum 81 mm - Minimum 9 mm



Weapon Details
Flag
37mm Antitank Gun M3
(Anti Tank Gun)
Blank
photo of 37mm Antitank Gun M3 from Wikipedia
History
Used against the Japanese in the Phillipines in 1941, and proved effective, however when used in the North Africa Campaign the shells bounced off the German medium tanks. This gun was also used in a number of American Tanks.
ManufacturerWatervliet Arsenal,
Manufactured1940 - 1944
Calibre37mm
Rate of Fire25 rpm

Ammunition Details
Name/Id Calibre Weight MVelocity Explosive Content
AP M74 Shot(AP)
37mm 0.86Kg 885M/Sec
Quoted Penetration 36mm @ 500mtr/0° ( ≈ 36mm/0°)
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.12 0.24 0.51 1.15 2.01 3.19 4.93 7.73
Penetration(mm@30°) 61 55 48 38 30 22 16 10
Penetration(mm@0°) 71 64 56 45 35 26 19 12
Hit Probability(%) 98 98 98 96 64 25 8 2



HE M63 Shell(HE)
37mm 0.73Kg 792M/Sec 0.039Kg explosive
Maximum Range 3000 Mtr
Range(Mtr)10002000300040005000600070008000
Flight Time(Secs) 1.73 5.51 20.09
Burst radius Infantry in open 99% kill0 mtr Burst radius Infantry in open 66% kill1 mtr
Burst radius Infantry in open 33% kill3 mtr  Armour Penetration inc roof at 1 mtr0 mm
An explosion within 1 mtr of infantry in the open will cause > 66% casualties and could damage some AFV's.
An explosion within 3 mtr of infantry in the open will cause 33% casualties.
The blast effect of this shell exploding within 1 mtr of an armoured vehicle will not cause any significant armour damage.

Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.

The data that has been used to create these records has come from Wikipedia, The Lone Sentry, The Bundes Archive and numerous books and websites that have provided the detailed information that has not been available anywhere else. The information we use to calculate the penetration tables, flight times and the hit probability comes from the Gun Calibre, the Shell Mass(Kg) and the muzzle velocity, plus range reductions to allow for gravity and wind resistance. This calculation originally came from a pre-war Krupp calculation which has been modified, and seems to fit the actual test results.
