Britain
Inf Tank Mk III (Valentine XI)

Share with Facebook


The Inf Tank Mk III was designed in 1939 based on the existing fully tracked Valentine and was in use from 1944 to 1945.

Flag of World War 2 Britain

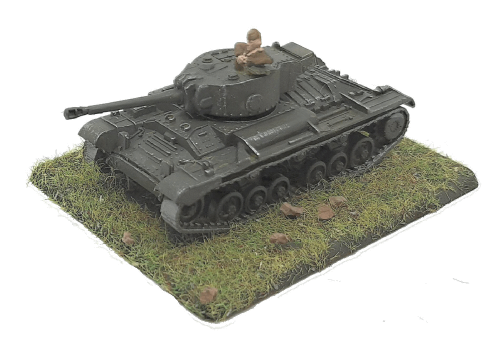

Photo of Inf Tank Mk III (Valentine XI)

General Details
Specifications
Operational Date(s)1944 - 1945
Quantity Produced0
Weight17.2 tonne
Crew4
M.G's small1
M.G's large(>10mm)n/a
Length5.46 mtr
Width2.65 mtr
Height2.31 mtr
Engine Details/Performance
Max Road Speed15 mph
Max Cross Country Speed8 mph
Range Road0 miles
Range Cross Countryunknown
Fuel TypeDiesel
Fuel Capacityunknown
Horse Power210 hp
Power/Weight12 hp/tonne
General Information
The Inf Tank Mk III was designed in 1939 based on the existing fully tracked Valentine and was in use from 1944 to 1945.

It was armed with 1 light machine gun. Its main armament consisted of an Ordnance Q.F. 75mm which could penetrate 106 mm of flat plate at 200 metres

The Infantry tank MkIII the Valentine was a redesigned A10 to provide an infantry support tank which could move slowly with the infantry to provide AT and machine gun support.

The turret had power traverse with a 75mm A/T gun. The armour was good for this size of vehicle. The Valentine X was designed with a 75mm gun turret.

Armour Details
Turret
Front65mm@(65mm)
Side60mm@(60mm)
Rear60mm@(60mm)
Top10mm@90°(10mm)
Superstructure
Front30mm@68°(80mm)
Side60mm@(60mm)
Rear60mm@(60mm)
Top10mm@90°(10mm)
Hull
Front60mm@21°(64mm)
Side60mm@(60mm)
Rear60mm@(60mm)
Top10mm@90°(10mm)
Armour (x)mm @ (y)° (Effective mm @ 0°)
Effective Armour - Maximum 80 mm - Minimum 10 mm



Weapon Details
Flag
Ordnance Q.F. 75mm
(Tank Gun)
Blank
photo of Ordnance Q.F. 75mm from Wikipedia
History
This was a temporary fix to the problem of 6pdr guns not having a powerful enough HE shell. It was created by boring out the British 57mm 6pdr to take the American 75mm AP/HE shells, which reduced the Anti Tank performance but provided HE support.
Manufactured1943 - 1945
Calibre75mm
LengthL/32

Ammunition Details
Name/Id Calibre Weight MVelocity Explosive Content
AP M72 U.S.
(AP Armor Piercing)
75mm 6.58Kg 618M/Sec
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.16 0.33 0.68 1.45 2.31 3.29 4.41 5.71
Penetration(mm@30°) 98 91 83 73 64 55 46 38
Penetration(mm@0°) 114 106 96 85 74 64 54 45
Hit Probability(%) 98 98 98 88 54 25 15 3



HE M48
(HE High Explosive)
75mm 6.76Kg 625M/Sec 0.680Kg explosive
Maximum Range not shown as gun elevation is limited
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.16 0.33 0.68 1.43 2.29 3.25 4.36 5.65
Direct Fire
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.16 0.33 0.68 1.43 2.29 3.25 4.36 5.65
Hit Probability(%) 98 98 98 88 57 25 15 3
Blast/Fragmentation Effects
Burst radius Infantry in open 99% kill3 mtr Burst radius Infantry in open 66% kill6 mtr
Burst radius Infantry in open 33% kill16 mtr  Armour Penetration inc roof at 1 mtr2 mm
An explosion within 3 mtr of infantry in the open will cause 99% casualties - lethal.
An explosion within 6 mtr of infantry in the open will cause > 66% casualties and could damage some AFV's.
An explosion within 16 mtr of infantry in the open will cause 33% casualties.
The blast effect of this shell exploding within 1 mtr of an armoured vehicle will penetrate 2 mm of the tank armour including the roof.

Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.

The data that has been used to create these records has come from Wikipedia, The Lone Sentry, The Bundes Archive and numerous books and websites that have provided the detailed information that has not been available anywhere else. The information we use to calculate the penetration tables, flight times and the hit probability comes from the Gun Calibre, the Shell Mass(Kg) and the muzzle velocity, plus range reductions to allow for gravity and wind resistance. This calculation originally came from a pre-war Krupp calculation which has been modified, and seems to fit the actual test results.
