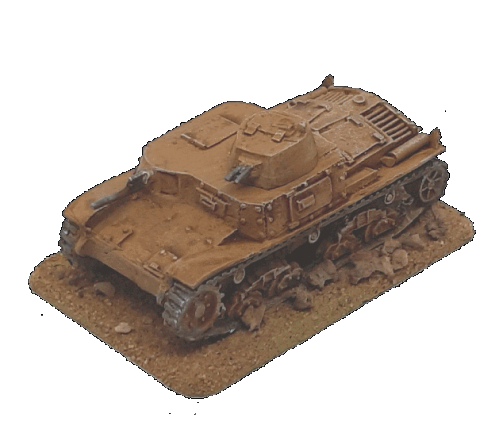

The Carro Armato M11/39 Medium Tank was designed in 1937 and was in use from 1939 to 1944.
General Details
Specifications
Operational Date(s)
1939 - 1944
Quantity Produced
100
Weight
11.1 tonne
Crew
3
M.G's small
2
M.G's large(>10mm)
n/a
Length
4.77 mtr
Width
2.18 mtr
Height
2.26 mtr
Engine Details/Performance
Max Road Speed
21 mph
Max Cross Country Speed
11 mph
Range Road
0 miles
Range Cross Country
unknown
Fuel Type
Diesel
Fuel Capacity
125 gal
Horse Power
105 hp
Power/Weight
9 hp/tonne
General Information
The Carro Armato M11/39 Medium Tank was designed in 1937 and was in use from 1939 to 1944.
The vehicle was powered by FIAT-SPA '8T V-8 diesel' diesel powerplant producing 105 HP which could drive the vehicle on roads at up to 21 mph with a range of about 0 miles before refuelling. Its cross country performance was good providing a max speed of about 11 mph and a range of about 0 miles.
It was armed with 2 light machine guns which were Breda Modello 38s. Its main armament consisted of an Cannone contracarro da 37/32 which could penetrate 48 mm of flat plate at 100 metres
The vehicle was powered by a Fiat diesel engine of 105hp the front drive sprockets took the track under eight road wheels on two bogies, round the rear idler and back via three return rollers.
The 37mm gun was hull mounted with the turret holding the twin machine guns, but this design was shown to be less effective than a turret mounted main armament.
Armour Details
Turret
Front
30mm
@
10°
(30mm)
Side
15mm
@
10°
(15mm)
Rear
15mm
@
10°
(15mm)
Top
6mm
@
90°
(6mm)
Superstructure
Front
30mm
@
10°
(30mm)
Side
15mm
@
6°
(15mm)
Rear
15mm
@
0°
(15mm)
Top
6mm
@
85°
(6mm)
Hull
Front
30mm
@
0°
(30mm)
Side
15mm
@
0°
(15mm)
Rear
15mm
@
0°
(15mm)
Top
6mm
@
85°
(6mm)
Armour (x)mm @ (y)° (Effective mm @ 0°)
Effective Armour - Maximum 30 mm - Minimum 6 mm
Weapon Details
Breda Modello 38
History
The Breda model 38 was the Italian army standard vehicle mounted machine gun.
Manufacturer
Breda Meccanica Bresciana
Manufactured
1937 - 1943
Calibre
7.92mm
Length
L/98
Rate of Fire
200 rpm
Ammunition Details
Name/Id
Calibre Weight MVelocity
Explosive Content
7.92×57mm Mauser(AP)
7.92mm 0.012Kg 910M/Sec
Quoted Penetration 8mm @ 100mtr/30° ( ≈ 9mm/0°)
Range(Mtr)
100
200
400
800
1200
1600
2000
2400
Flight Time(Secs)
0.17
Penetration(mm@30°)
6
Penetration(mm@0°)
7
Hit Probability(%)
98
Weapon Details
Cannone contracarro da 37/32
History
This was the Austrian Bohler 47mm Gun.
Calibre
37mm
Rate of Fire
10 rpm
Ammunition Details
Name/Id
Calibre Weight MVelocity
Explosive Content
AP(AP)
37mm 0.68Kg 762M/Sec
Quoted Penetration 38mm @ 365mtr/0° ( ≈ 38mm/0°)
Range(Mtr)
100
200
400
800
1200
1600
2000
2400
Flight Time(Secs)
0.13
0.28
0.59
1.34
2.33
3.7
5.71
8.97
Penetration(mm@30°)
41
38
32
25
20
15
11
6
Penetration(mm@0°)
48
44
38
30
24
18
13
8
Hit Probability(%)
98
98
98
90
54
22
3
1
Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.
