Italy
Semovente da 75/46 su scafo di carro M43

Share with Facebook

The Semovente da 75/46 su scafo di carro M43 based on the existing fully tracked M13/40 and was in use from 1943.

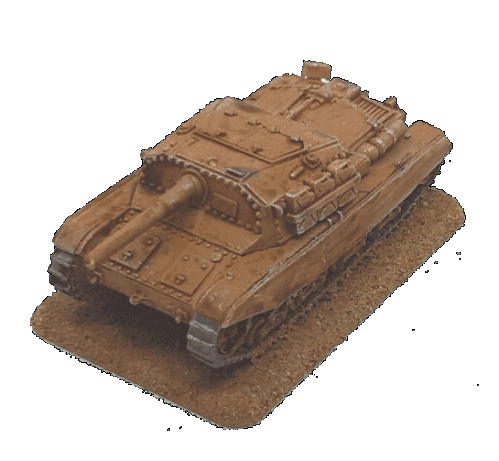

Photo of Semovente da 75/46 su scafo di carro M43

General Details
Specifications
Operational Date(s)1943
Quantity Produced15
Weight15.7 tonne
Crew3
M.G's small1
M.G's large(>10mm)n/a
Length5.15 mtr
Width2.49 mtr
Height1.77 mtr
Engine Details/Performance
Max Road Speed22 mph
Max Cross Country Speed12 mph
Range Road112 miles
Range Cross Country44 miles
Fuel TypeDiesel
Fuel Capacityunknown
Horse Power170 hp
Power/Weight10 hp/tonne
General Information
The Semovente da 75/46 su scafo di carro M43 based on the existing fully tracked M13/40 and was in use from 1943.

The vehicle was powered by FIAT-SPA '15TB M-15 diesel V8' diesel powerplant producing 170 HP which could drive the vehicle on roads at up to 22 mph with a range of about 112 miles before refuelling. Its cross country performance was good providing a max speed of about 12 mph and a range of about 44 miles.

It was armed with 1 light machine gun. Its main armament consisted of an Cannone contracarro da 75/46 which could penetrate 141 mm of flat plate at 100 metres


Armour Details
Turret
Frontn/a
Siden/a
Rearn/a
Topn/a
Superstructure
Front75mm@(75mm)
Side45mm@15°(47mm)
Rear25mm@(25mm)
Top15mm@88°(15mm)
Hull
Front50mm@45°(71mm)
Side25mm@(25mm)
Rear25mm@14°(26mm)
Top15mm@90°(15mm)
Armour (x)mm @ (y)° (Effective mm @ 0°)
Effective Armour - Maximum 75 mm - Minimum 15 mm



Weapon Details
Flag
Cannone contracarro da 75/46 Blank
Manufacturedunknown - 1942
Calibre75mm

Ammunition Details
Name/Id Calibre Weight MVelocity Explosive Content
AP(AP)
75mm 6.8Kg 740M/Sec
Quoted Penetration 91mm@500m
Range(Mtr)1002004008001200160020002400
Flight Time(Secs) 0.14 0.28 0.57 1.21 1.93 2.75 3.69 4.77
Penetration(mm@30°) 122 113 103 90 78 68 58 48
Penetration(mm@0°) 141 131 119 105 91 79 67 56
Hit Probability(%) 98 98 98 93 69 39 22 8

Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.

The data that has been used to create these records has come from Wikipedia, The Lone Sentry, The Bundes Archive and numerous books and websites that have provided the detailed information that has not been available anywhere else. The information we use to calculate the penetration tables, flight times and the hit probability comes from the Gun Calibre, the Shell Mass(Kg) and the muzzle velocity, plus range reductions to allow for gravity and wind resistance. This calculation originally came from a pre-war Krupp calculation which has been modified, and seems to fit the actual test results.
