Japan

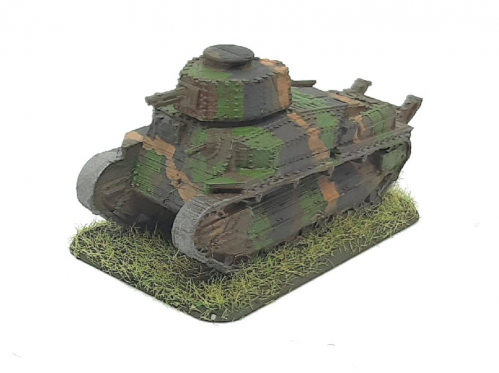

Medium Tank Type 89 (CHI-RO) |
| The Medium Tank Type 89 was designed in 1928, manufactured by Mitsubishi and was in use from 1929 to 1945. |
|
|
| | Specifications | | Operational Date(s) | 1929 - 1945 | | Quantity Produced | 404 | | Weight | 12.79 tonne | | Crew | 4 | | M.G's small | 2 | | M.G's large(>10mm) | n/a | | Length | 5.78 mtr | | Width | 2.21 mtr | | Height | 2.61 mtr | | Engine Details/Performance | | Max Road Speed | 16 mph | | Max Cross Country Speed | 8 mph | | Range Road | 110 miles | | Range Cross Country | 44 miles | | Fuel Type | Diesel | | Fuel Capacity | unknown | | Horse Power | 120 hp | | Power/Weight | 9 hp/tonne | | | General Information | The Medium Tank Type 89 was designed in 1928, manufactured by Mitsubishi and was in use from 1929 to 1945.
The vehicle was powered by Mitsubishi 'A6120VD' diesel powerplant producing 120 HP which could drive the vehicle on roads at up to 16 mph with a range of about 110 miles before refuelling. Its cross country performance was adequate providing a max speed of about 8 mph and a range of about 44 miles.
It was armed with 2 light machine guns. | |
| | Turret | | Front | | 17mm | @ | 15° | (18mm) | | Side | | 15mm | @ | 15° | (16mm) | | Rear | | 15mm | @ | 0° | (15mm) | | Top | | 10mm | @ | 90° | (10mm) |
| | Superstructure | | Front | | 17mm | @ | 37° | (21mm) | | Side | | 17mm | @ | 0° | (17mm) | | Rear | | 17mm | @ | 60° | (34mm) | | Top | | 10mm | @ | 80° | (10mm) |
|
| Hull | | Front | | 17mm | @ | 60° | (34mm) | | Side | | 17mm | @ | 0° | (17mm) | | Rear | | 17mm | @ | 60° | (34mm) | | Top | | 10mm | @ | 80° | (10mm) |
| | Armour (x)mm @ (y)° (Effective mm @ 0°) | | Effective Armour - Maximum 34 mm - Minimum 10 mm |
| |
|
|
Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.
The data that has been used to create these records has come from Wikipedia, The Lone Sentry, The Bundes Archive
and numerous books and websites that have provided the detailed information that has not been available anywhere else. The
information we use to calculate the penetration tables, flight times and the hit probability comes from the Gun Calibre,
the Shell Mass(Kg) and the muzzle velocity, plus range reductions to allow for gravity and wind resistance. This calculation
originally came from a pre-war Krupp calculation which has been modified, and seems to fit the actual test results.
