Japan

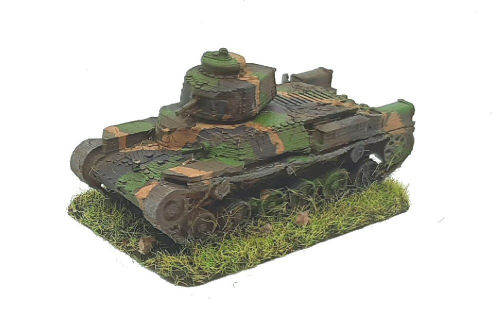

Medium Tank Type 97 (CHI-HA) (CHI-HA)

Share with Facebook

General Details
Specifications
Operational Date(s)1937
Ordnance classification
Quantity Produced0
Weightunknown
Crew4
M.G's small2
M.G's large(>10mm)n/a
Length5.54 mtr
Width2.36 mtr
Height2.26 mtr
Engine Details/Performance
Max Road Speed24 mph
Max Cross Country Speedunknown
Range Road0 miles
Range Cross Countryunknown
Fuel TypeUnknown
Fuel Capacityunknown
Horse Power0 hp
Power/Weightunknown
General Information

Armour Details
Turret
Front25mm@15°(26mm)
Side25mm@15°(26mm)
Rear25mm@15°(26mm)
Top8mm@90°(8mm)
Superstructure
Front25mm@45°(35mm)
Side15mm@15°(16mm)
Rear7mm@15°(7mm)
Top8mm@80°(8mm)
Hull
Front17mm@30°(20mm)
Side15mm@15°(16mm)
Rear7mm@15°(7mm)
Top8mm@80°(8mm)
Armour (x)mm @ (y)° (Effective mm @ 0°)
Effective Armour - Maximum 35 mm - Minimum 8 mm

Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.

The data that has been used to create these records has come from Wikipedia, The Lone Sentry, The Bundes Archive and numerous books and websites that have provided the detailed information that has not been available anywhere else. The information we use to calculate the penetration tables, flight times and the hit probability comes from the Gun Calibre, the Shell Mass(Kg) and the muzzle velocity, plus range reductions to allow for gravity and wind resistance. This calculation originally came from a pre-war Krupp calculation which has been modified, and seems to fit the actual test results.
