Char D1 |

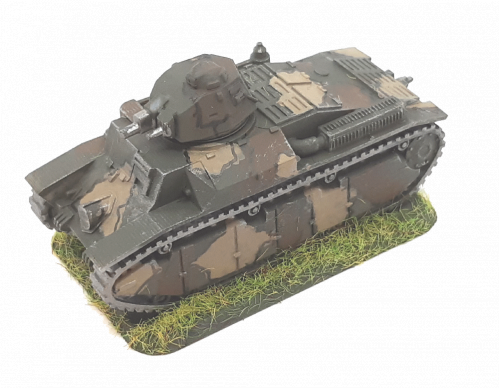

| The Char D1 was designed in 1930, manufactured by Renault and was in use from 1931 to 1945. |
|
|
| | Specifications | | Operational Date(s) | 1931 - 1945 | | Quantity Produced | 60 | | Weight | 13 tonne | | Crew | 3 | | M.G's small | 2 | | M.G's large(>10mm) | n/a | | Length | 5.83 mtr | | Width | 2.18 mtr | | Height | 2.41 mtr | | Engine Details/Performance | | Max Road Speed | 11 mph | | Max Cross Country Speed | 6 mph | | Range Road | 56 miles | | Range Cross Country | 22 miles | | Fuel Type | Petrol | | Fuel Capacity | unknown | | Horse Power | 65 hp | | Power/Weight | 5 hp/tonne | | | General Information | The Char D1 was designed in 1930, manufactured by Renault and was in use from 1931 to 1945.
The vehicle was powered by Renault '4-cylinder' petrol powerplant producing 65 HP which could drive the vehicle on roads at up to 11 mph with a range of about 56 miles before refuelling. Its cross country performance was adequate providing a max speed of about 6 mph and a range of about 22 miles.
It was armed with 2 light machine guns which were Mitrailleuse modèle 1931s. Its main armament consisted of a 47 mm SA 34 which could penetrate 27 mm of flat plate at 800 metres
| |
| | Turret | | Front | | 35mm | @ | 15° | (36mm) | | Side | | 25mm | @ | 15° | (26mm) | | Rear | | 25mm | @ | 15° | (26mm) | | Top | | 10mm | @ | 90° | (10mm) |
| | Superstructure | | Front | | 35mm | @ | 45° | (49mm) | | Side | | 16mm | @ | 0° | (16mm) | | Rear | | 10mm | @ | 15° | (10mm) | | Top | | 10mm | @ | 85° | (10mm) |
|
| Hull | | Front | | 35mm | @ | 40° | (46mm) | | Side | | 10mm | @ | 0° | (10mm) | | Rear | | 10mm | @ | 15° | (10mm) | | Top | | 10mm | @ | 85° | (10mm) |
| | Armour (x)mm @ (y)° (Effective mm @ 0°) | | Effective Armour - Maximum 49 mm - Minimum 10 mm |
| |
| Weapon Details |
|---|
|
Mitrailleuse modèle 1931
(Machine Gun) |
 |
|
| | History | |
|---|
| | Designed by Lt Colonel Reibel, the FM 24/29 was developed into a heavier machine gun capable of relatively sustained fire, by giving it an extremely thick and massive barrel, to act as a heat sink. |
| | Manufacturer | Reibel |
|---|
| | Manufactured | 1932 - 1945 |
|---|
| | Calibre | 7.50mm |
|---|
| | Length | L/80 |
|---|
| | Rate of Fire | 450 rpm |
|---|
| | Number of Rounds | 2500
|
|---|
| |
| Ammunition Details |
|---|
| Name/Id |
Calibre Weight MVelocity |
Explosive Content |
|
7.5 MAS
(AP Standard Small Arms)
|
7.50mm 0.009Kg 820M/Sec | |
| Range(Mtr) | 100 | 200 | 400 | 800 | 1200 | 1600 | 2000 | 2400 |
|---|
| Flight Time(Secs) |
0.15 |
0.36 |
1.2 |
|
|
|
|
|
|---|
| Penetration(mm@30°) |
10 |
7 |
4 |
|
|
|
|
|
|---|
| Penetration(mm@0°) |
12 |
9 |
5 |
|
|
|
|
|
|---|
| Hit Probability(%) |
98 |
98 |
96 |
|
|
|
|
|
|---|
|
7.5 MAS
(BALL Standard Small Arms)
|
7.50mm 0.009Kg 820M/Sec | |
| Range(Mtr) | 100 | 200 | 400 | 800 | 1200 | 1600 | 2000 | 2400 |
|---|
| Flight Time(Secs) |
0.15 |
|
|
|
|
|
|
|
|---|
| Penetration(mm@30°) |
1 |
|
|
|
|
|
|
|
|---|
| Penetration(mm@0°) |
2 |
|
|
|
|
|
|
|
|---|
| Hit Probability(%) |
98 |
|
|
|
|
|
|
|
|---|
| Weapon Details |
|---|
|
47 mm SA 34
(Tank Gun) |
|
| | Calibre | 47mm |
|---|
| | Length | L/27 |
|---|
| | Number of Rounds | 75
|
|---|
| |
| Ammunition Details |
|---|
| Name/Id |
Calibre Weight MVelocity |
Explosive Content |
|
Obus de rupture Mle1892G
(AP Armor Piercing)
|
47mm 1.4Kg 450M/Sec | |
| Quoted Penetration 27mm @ 100mtr/0° |
| Range(Mtr) | 100 | 200 | 400 | 800 | 1200 | 1600 | 2000 | 2400 |
|---|
| Flight Time(Secs) |
0.23 |
0.46 |
0.96 |
2.1 |
3.47 |
5.14 |
7.24 |
9.91 |
|---|
| Penetration(mm@30°) |
27 |
25 |
22 |
19 |
15 |
12 |
10 |
7 |
|---|
| Penetration(mm@0°) |
32 |
29 |
26 |
22 |
18 |
15 |
12 |
9 |
|---|
| Hit Probability(%) |
98 |
98 |
98 |
64 |
25 |
6 |
2 |
1 |
|---|
|
Obus Explosif Mle 1932
(HE High Explosive)
|
47mm 1.41Kg 440M/Sec | 0.142Kg explosive |
| Range(Mtr) | 100 | 200 | 400 | 800 | 1200 | 1600 | 2000 | 2400 |
|---|
| Flight Time(Secs) |
0.23 |
0.47 |
0.99 |
2.15 |
3.55 |
5.26 |
7.4 |
10.13 |
|---|
| Direct Fire |
| Range(Mtr) | 100 | 200 | 400 | 800 | 1200 | 1600 | 2000 | 2400 |
|---|
| Flight Time(Secs) |
0.23 |
0.47 |
0.99 |
2.15 |
3.55 |
5.26 |
7.4 |
10.13 |
|---|
| Hit Probability(%) |
98 |
98 |
98 |
60 |
22 |
6 |
2 |
0 |
|---|
| Blast/Fragmentation Effects |
| Burst radius Infantry in open 99% kill | 2 mtr |
Burst radius Infantry in open 66% kill | 4 mtr |
|---|
| Burst radius Infantry in open 33% kill | 11 mtr |
Armour Penetration inc roof at 1 mtr | 0 mm |
|---|
| An explosion within 2 mtr of infantry in the open will cause 99% casualties - lethal. |
| An explosion within 4 mtr of infantry in the open will cause > 66% casualties and could damage some AFV's. |
| An explosion within 11 mtr of infantry in the open will cause 33% casualties. |
| The blast effect of this shell exploding within 1 mtr of an armoured vehicle will not cause any significant armour damage. |
|
|
Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.
