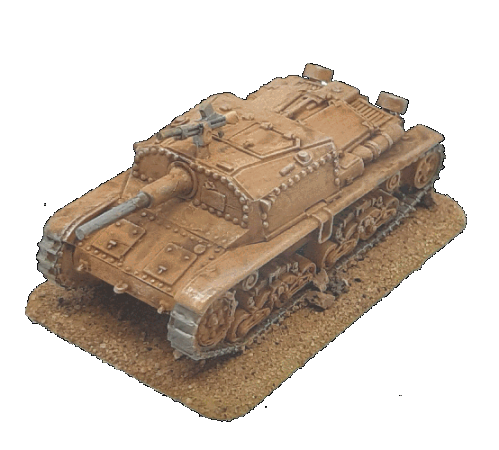

| Semovente da 75/34 su scafo di carro M42 |
|
|
| | Specifications | | Manufacture Date(s) | 1943 | | Quantity Produced | 25 | | Weight | unknown | | Crew | 3 | | M.G's small | 0 | | M.G's large(>10mm) | 0 | | Length | 5.15 mtr | | Width | 2.49 mtr | | Height | 1.77 mtr | | Engine Details/Performance | | Max Road Speed | 24 mph | | Max Cross Country Speed | 9 mph | | Range Road | 0 miles | | Range Cross Country | 0 miles | | Fuel Type | Unknown | | Fuel Capacity | 0 gal | | Horse Power | 0 hp | | Power/Weight | unknown | | | General Information | The Semovente 75/34 was a self propelled gun based on the M13/40 chassis.
The vehicle was powered by a Fiat diesel engine of 145hp the front drive sprockets took the track inder eight road wheels on two bogies, round the rear idler and back via three return rollers.
The gun was a 75mm L/34 howitzer mounted in a box shaped superstructure. | |
| | Turret | | Front | 0mm@0°(0mm) | | Side | 0mm@0°(0mm) | | Rear | 0mm@0°(0mm) | | Top | 0mm@0° n/a |
| | Superstructure | | Front | 30mm@11°(31mm) | | Side | 25mm@9°(25mm) | | Rear | 25mm@0°(25mm) | | Top | 15mm@90°(15 mm) |
|
| Hull | | Front | 30mm@45°(42mm) | | Side | 25mm@0°(25mm) | | Rear | 25mm@9°(25mm) | | Top | 15mm@90°(15 mm) |
| | Armour (x)mm @ (y)° (Effective mm @ 0°) | | Effective Armour - Maximum 42 mm - Minimum 15 mm |
| | Weapon Details |
|---|
| Cannone contracarro da 75/32 M37 |
| Calibre | 75mm |
|---|
| |
| Name/Id |
Calibre Weight MVelocity |
Quoted Penetration |
| |
| AP(AP) |
75mm
6.3Kg
600M/Sec | |
| Range(Mtr) | 100 | 200 | 400 | 800 | 1200 | 1600 | 2000 | 2400 |
|---|
| Flight Time(Secs) |
0.17 |
0.34 |
0.7 |
1.49 |
2.38 |
3.39 |
4.55 |
5.88 |
|---|
| Penetration(mm) |
73 |
72 |
70 |
66 |
62 |
58 |
54 |
50 |
|---|
| Hit Probability(%) |
98 |
98 |
98 |
88 |
54 |
25 |
8 |
3 |
|---|
|
|
|
Hit probability is based on a static 2 x 2.4 metre panel at 0 degrees(vertical) at the range specified.
The data that has been used to create these records has come from Wikipedia, The Lone Sentry, The Bundes Archive
and numerous books and websites that have provided the detailed information that has not been available anywhere else. The
information we use to calculate the penetration tables, flight times and the hit probability comes from the Gun Calibre,
the Shell Mass(Kg) and the muzzle velocity, plus range reductions to allow for gravity and wind resistance. This calculation
originally came from a pre-war Krupp calculation which has been modified, and seems to fit the actual test results.
